Bo mạch chủ Gigabyte B650E AORUS MASTER

Name: Bo mạch chủ Gigabyte B650E AORUS MASTER
Brand: Phucanh
SKU: MAB.GIG.B650EAORUSMASTER
Price: 9980000 VND
Availability: InStock
Rating: 5 (10 reviews)

Giao hàng tận nơi miễn phí theo chính sách vận chuyển (Xem chi tiết)

Lượt xem: 2.368

Bảo hành

36 Tháng. Bảo hành tại Phúc Anh.

📋 Sản phẩm đã ngừng kinh doanh - vui lòng chọn mua sản phẩm khác hoặc liên hệ nhân viên kinh doanh tư vấn

🔊 Gợi ý sản phẩm thay thế

-12%

Mainboard Gigabyte H510M H V2 (Intel H510/ Intel LGA 1200/ M-ATX/ 2 khe ram/ DDR4)

Giá niêm yết: 1.790.000 ₫ Giá khuyến mãi: 1.579.000 ₫

✔ Có hàng

-24%

Mainboard Asus H510M-K Tray (Intel H510/ Intel LGA 1200/ M-ATX/ DDR4/ Lan)

Giá niêm yết: 1.999.000 ₫ Giá khuyến mãi: 1.539.000 ₫

✔ Có hàng

Đang còn hàng tại cửa hàng:

Cấu hình Bo mạch chủ Gigabyte B650E AORUS MASTER

Chipset	: AMD B650
Socket	: Socket AM5
Kích thước	: ATX
Hỗ trợ CPU	: AMD Socket AM5, support for: AMD RyzenTM 7000 Series Processors
Khe cắm RAM	: 4 khe ram
Kết nối không dây	: AMD Wi-Fi 6E RZ616 (MT7922A22M) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Bus RAM hỗ trợ	: Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPOTM) and Extreme Memory Profile (XMP) memory modules
Thông số (Lan/Wireless)	: Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Khe cắm trong	: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Khe cắm mở rộng	: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) 4 x SATA 6Gb/s connectors

Xem thêm cấu hình chi tiết

Kết nối
Bus RAM hỗ trợ	: Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPOTM) and Extreme Memory Profile (XMP) memory modules
Thông số (Lan/Wireless)	: Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Khe cắm trong	: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Khe cắm mở rộng	: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) 4 x SATA 6Gb/s connectors

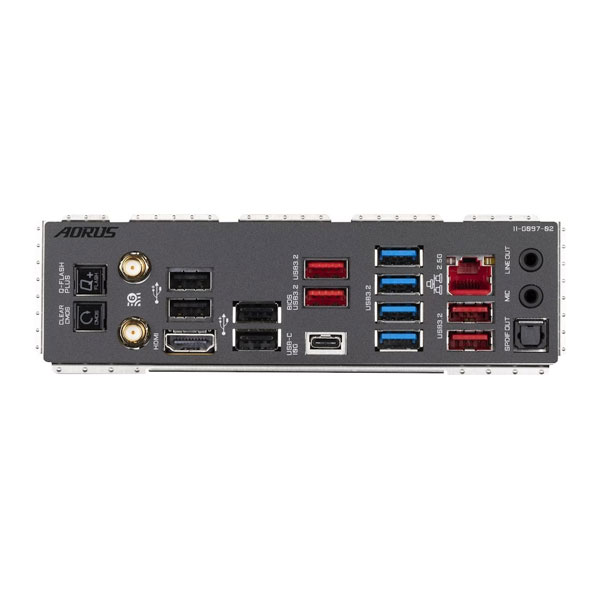

Cổng giao tiếp ngoài	: 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x HDMI 2.1 port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
Thông tin chung
Socket	: Socket AM5
Hỗ trợ CPU	: AMD Socket AM5, support for: AMD RyzenTM 7000 Series Processors
Chipset	: AMD B650
Khe cắm RAM	: 4 khe ram
Card đồ họa	: 1 x HDMI port, supporting a maximum resolution of 7680x4320@60 Hz
Âm thanh	: Realtek® ALC1220-VB CODEC * The front panel line out jack supports DSD audio. ESS ES9118 DAC chip Support for DTS:X® Ultra High Definition Audio 2/4/5.1-channel * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Kết nối không dây	: AMD Wi-Fi 6E RZ616 (MT7922A22M) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Kích thước	: ATX
Mô tả khác	: Đang cập nhật
Phụ kiện kèm theo	: Sách, đĩa, cáp SATA, ...
