| Kết nối mạng |
: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
|
| Loại RAM |
: DDR5 |
|
| Bus RAM hỗ trợ |
: Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules |
| Thông số (Lan/Wireless) |
: Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Intel® Wi-Fi 6E AX210 (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.) |
| Khe cắm trong |
: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs.
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs.
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Khe cắm mở rộng |
: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot).
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and |

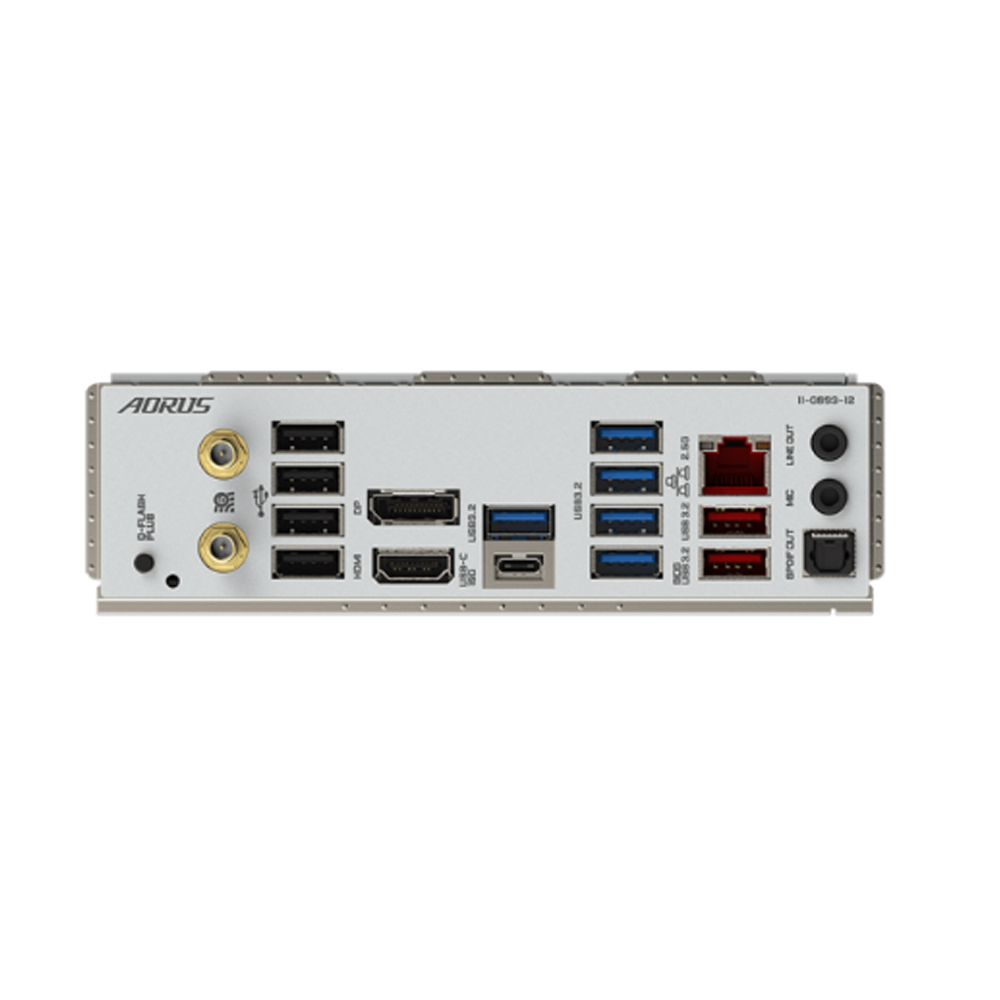

| Cổng giao tiếp ngoài |
: 1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)jk
1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
5 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks |
|
| Chipset |
: AMD B650 |
| Socket |
: Socket AM5 |
| Kích thước Main |
: M-ATX |
| Hỗ trợ CPU |
: AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors |
| Khe cắm RAM |
: 4 khe ram |
| Chi tiết Vga |
: Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
( Support for DisplayPort 1.4 version and HDR).
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
(Support for HDMI 2.1 version and HDCP 2.3).
(Support for native HDMI 2.1 TMDS compatible ports).
(Graphics specifications may vary depending on CPU support.) |
| Âm thanh |
: Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel |
| Mô tả khác |
: Support for Windows 11 64-bit
Support for Windows 10 64-bit |
| Phụ kiện kèm theo |
: Sách, đĩa, cáp SATA, ... |
