Bo mạch chủ Gigabyte B650M AORUS ELITE AX

Name: Bo mạch chủ Gigabyte B650M AORUS ELITE AX
Brand: Phucanh
SKU: MAB.GIG.B650MAORUSELITEAX
Price: 5930000 VND
Availability: InStock
Rating: 5 (10 reviews)

Giao hàng tận nơi miễn phí theo chính sách vận chuyển (Xem chi tiết)

Lượt xem: 2.499

Bảo hành

36 Tháng. Bảo hành tại Phúc Anh.

📋 Sản phẩm đã ngừng kinh doanh - vui lòng chọn mua sản phẩm khác hoặc liên hệ nhân viên kinh doanh tư vấn

🔊 Gợi ý sản phẩm thay thế

-12%

Mainboard Gigabyte H510M H V2 (Intel H510/ Intel LGA 1200/ M-ATX/ 2 khe ram/ DDR4)

Giá niêm yết: 1.790.000 ₫ Giá khuyến mãi: 1.579.000 ₫

✔ Có hàng

-24%

Mainboard Asus H510M-K Tray (Intel H510/ Intel LGA 1200/ M-ATX/ DDR4/ Lan)

Giá niêm yết: 1.999.000 ₫ Giá khuyến mãi: 1.539.000 ₫

✔ Có hàng

Đang còn hàng tại cửa hàng:

Cấu hình Bo mạch chủ Gigabyte B650M AORUS ELITE AX

Chipset	: AMD B650
Socket	: Socket AM5
Kích thước	: M-ATX
Hỗ trợ CPU	: AMD Socket AM5, support for: AMD RyzenTM 7000 Series Processors
Khe cắm RAM	: 4 khe ram
Kết nối không dây	: AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Bus RAM hỗ trợ	: Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPOTM) and Extreme Memory Profile (XMP) memory modules
Thông số (Lan/Wireless)	: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Khe cắm trong	: CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Khe cắm mở rộng	: 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCIEX4 slot conforms to PCI Express 3.0 standard.)

Xem thêm cấu hình chi tiết

Kết nối
Bus RAM hỗ trợ	: Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPOTM) and Extreme Memory Profile (XMP) memory modules
Thông số (Lan/Wireless)	: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Khe cắm trong	: CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Khe cắm mở rộng	: 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCIEX4 slot conforms to PCI Express 3.0 standard.)

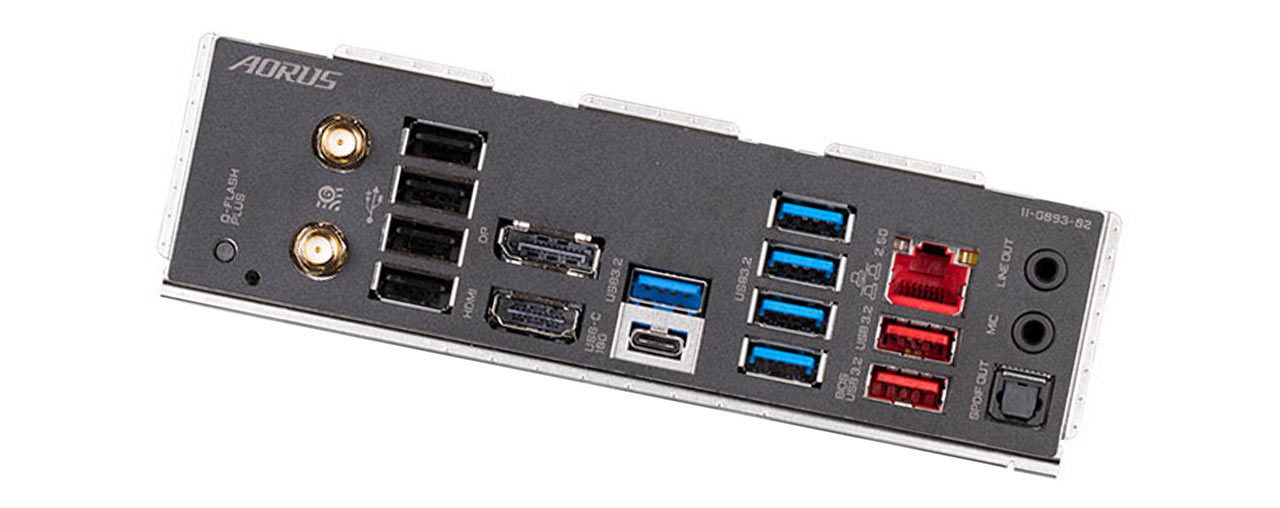

Cổng giao tiếp ngoài	: 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
Thông tin chung
Socket	: Socket AM5
Hỗ trợ CPU	: AMD Socket AM5, support for: AMD RyzenTM 7000 Series Processors
Chipset	: AMD B650
Khe cắm RAM	: 4 khe ram
Card đồ họa	: Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports.
Âm thanh	: Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Kết nối không dây	: AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Kích thước	: M-ATX
Mô tả khác	: Đang cập nhật
Phụ kiện kèm theo	: Sách, đĩa, cáp SATA, ...
