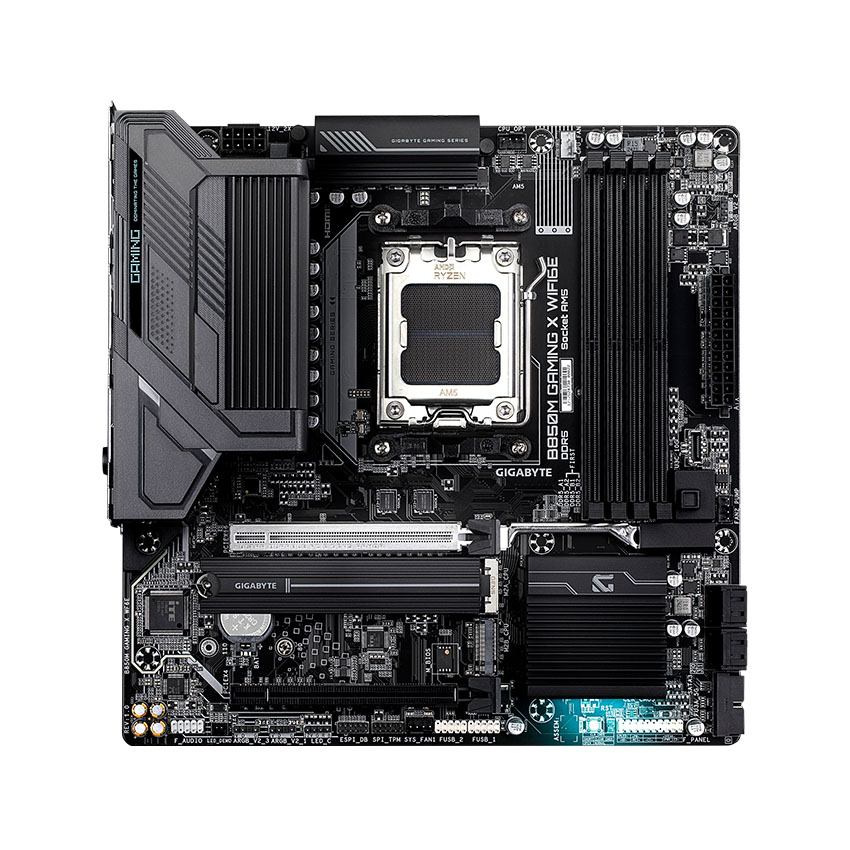

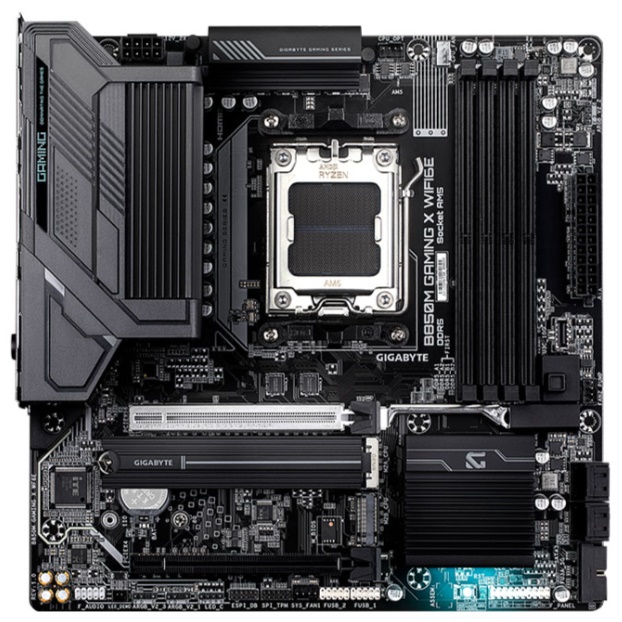

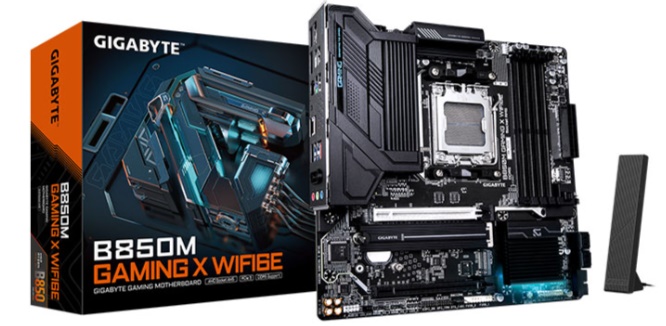

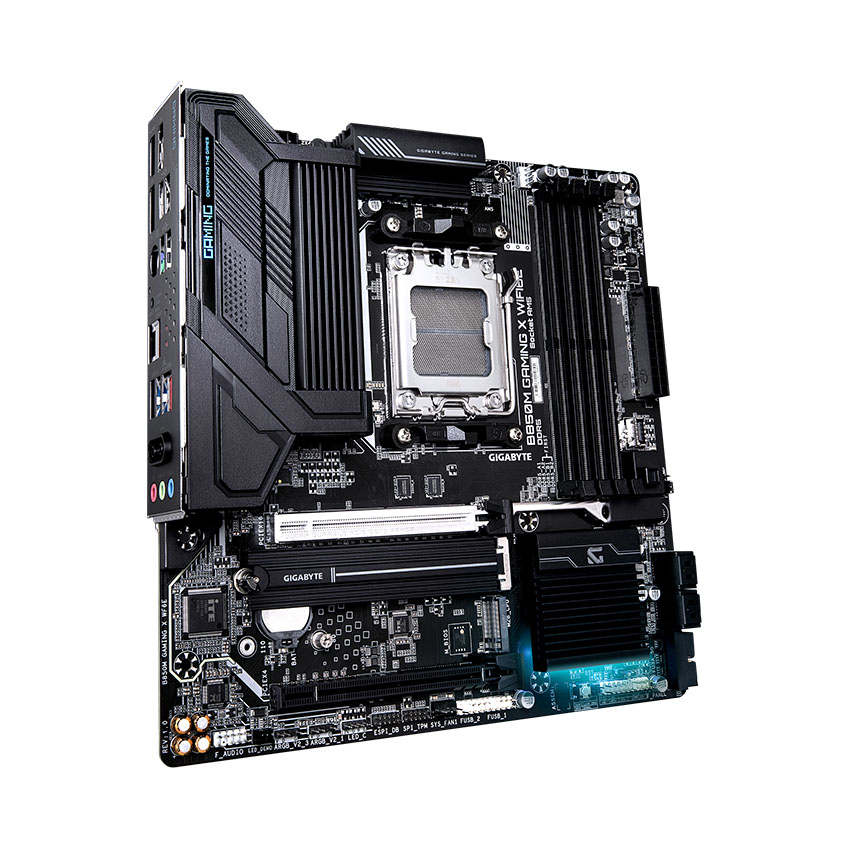

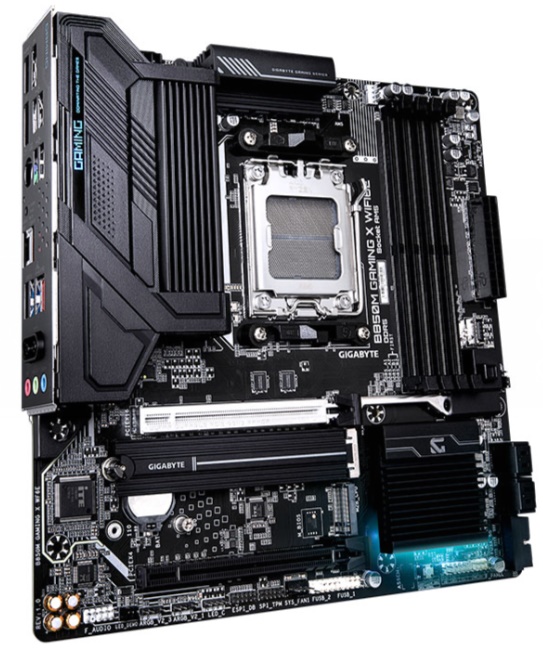

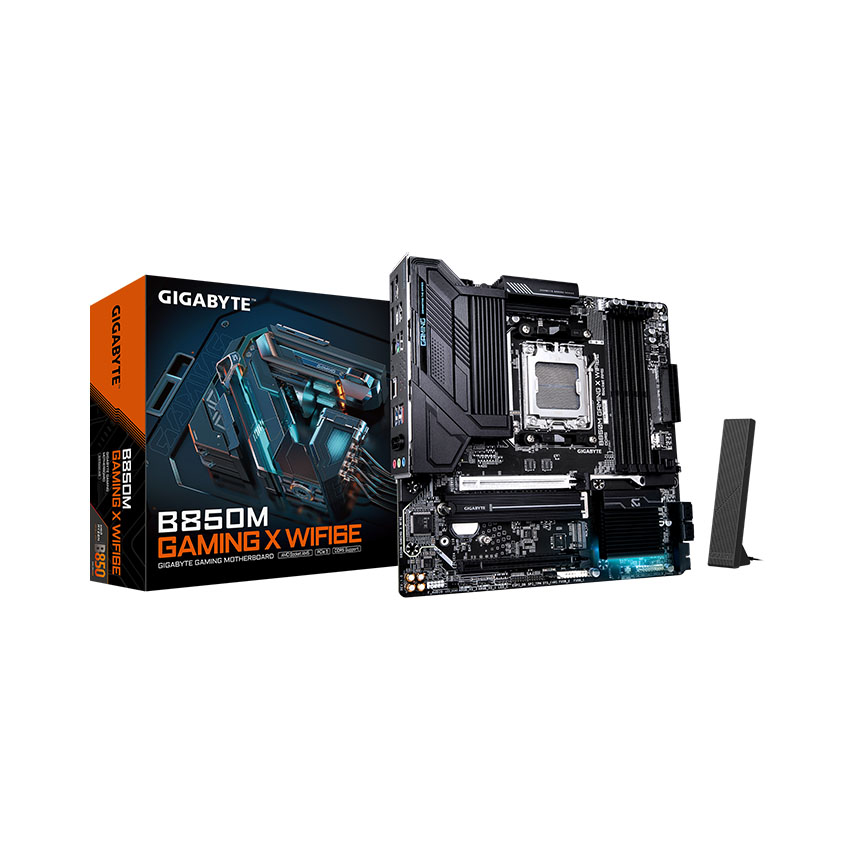

Mainboard Gigabyte B850M GAMING X WIFI6E DDR5 (AMD B850/ Socket AM5/ M-ATX/ 4 khe ram/ 2.5 Gigabit LAN)

Giá bán:

Liên hệ

Giao hàng tận nơi miễn phí theo chính sách vận chuyển (Xem chi tiết)

Lượt xem: 5 So sánh

Bảo hành

36 Tháng. Hàng chính hãng, bảo hành tại Phúc Anh. Đổi mới 30 ngày

Ưu đãi và Quà tặng Khuyến mại

✦ Giảm ngay tới 30,000,000 VNĐ Khi khách hàng mua trọn bộ máy tính Xem ngay

Xem thêm >

Liên hệ

Đang còn hàng tại cửa hàng:

Cấu hình Mainboard Gigabyte B850M GAMING X WIFI6E DDR5 (AMD B850/ Socket AM5/ M-ATX/ 4 khe ram/ 2.5 Gigabit LAN)

Chipset	: AMD B850
Socket	: Socket AM5
Kích thước Main	: M-ATX
Hỗ trợ CPU	: AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Khe cắm RAM	: 4 khe ram
Loại RAM	: DDR5
Bus RAM hỗ trợ	: Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
Chi tiết Vga	: Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Support for HDMI 2.1 version and HDCP 2.3, and HDR(. (Support for native HDMI 2.1 TMDS compatible ports). - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz (Support for DisplayPort 1.4 version). (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Kết nối mạng	: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Khe cắm trong	: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs. 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs. 4 x SATA 6Gb/s connectors RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Khe cắm mở rộng	: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot). Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

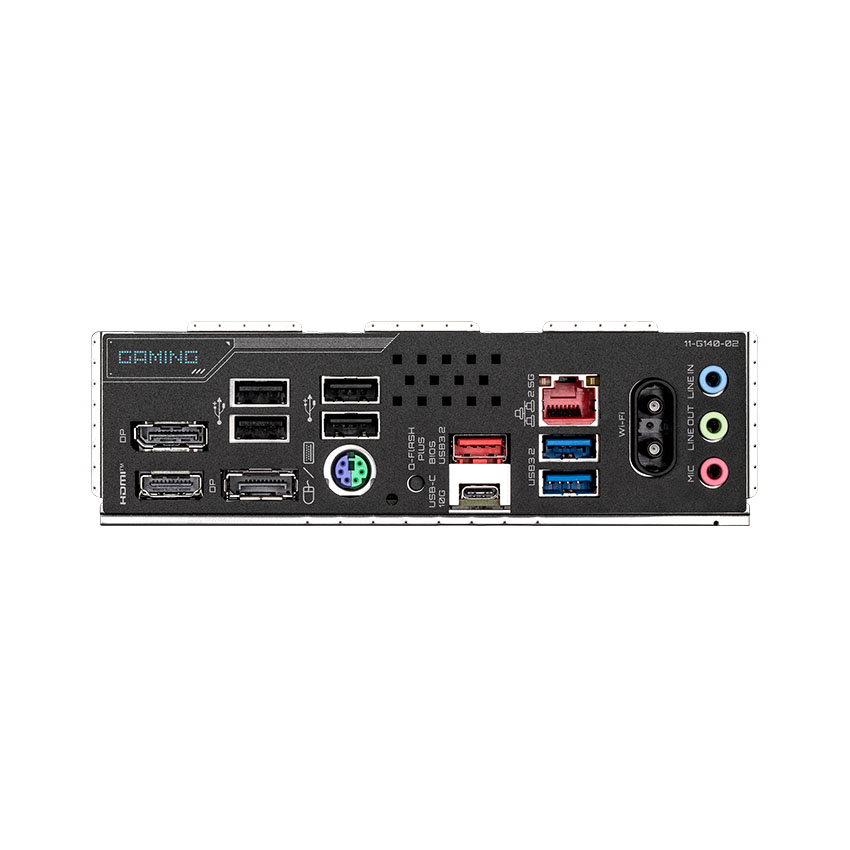

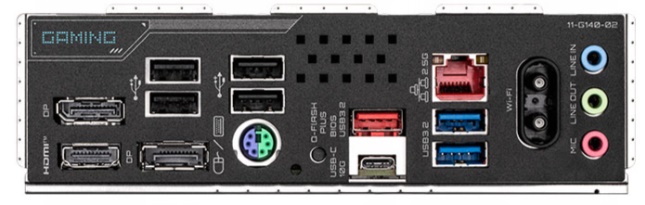

Cổng giao tiếp ngoài	: 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x Q-Flash Plus button 1 x PS/2 keyboard/mouse port 1 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (2T2R) 3 x audio jacks
Âm thanh	: Realtek® Audio CODEC (Only for rev. 1.0) High Definition Audio 2/4/5.1/7.1-channel

Xem thêm cấu hình chi tiết

Kết nối mạng	: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Bộ nhớ RAM
Loại RAM	: DDR5
Kết nối
Bus RAM hỗ trợ	: Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
Thông số (Lan/Wireless)	: Realtek® Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Khe cắm trong	: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs. 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs. 4 x SATA 6Gb/s connectors RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Khe cắm mở rộng	: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot). Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Cổng giao tiếp ngoài	: 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x Q-Flash Plus button 1 x PS/2 keyboard/mouse port 1 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (2T2R) 3 x audio jacks
Thông tin chung
Chipset	: AMD B850
Socket	: Socket AM5
Kích thước Main	: M-ATX
Hỗ trợ CPU	: AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Khe cắm RAM	: 4 khe ram
Chi tiết Vga	: Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Support for HDMI 2.1 version and HDCP 2.3, and HDR(. (Support for native HDMI 2.1 TMDS compatible ports). - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz (Support for DisplayPort 1.4 version). (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Âm thanh	: Realtek® Audio CODEC (Only for rev. 1.0) High Definition Audio 2/4/5.1/7.1-channel
Mô tả khác	: Support for Windows 11 64-bit Support for Windows 10 64-bit
Phụ kiện kèm theo	: Sách, đĩa, cáp SATA, ...
