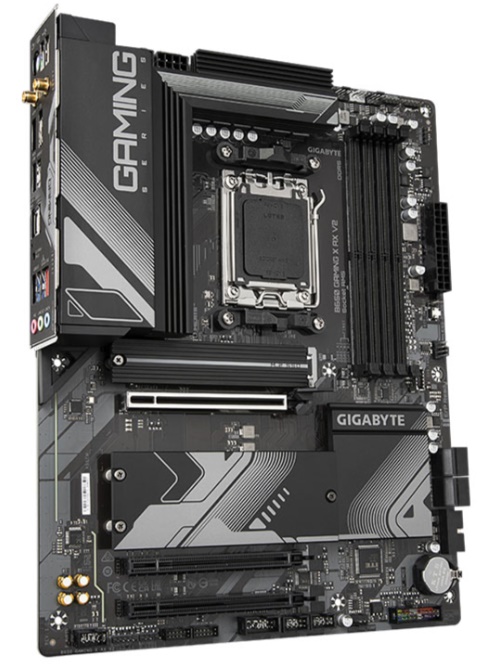

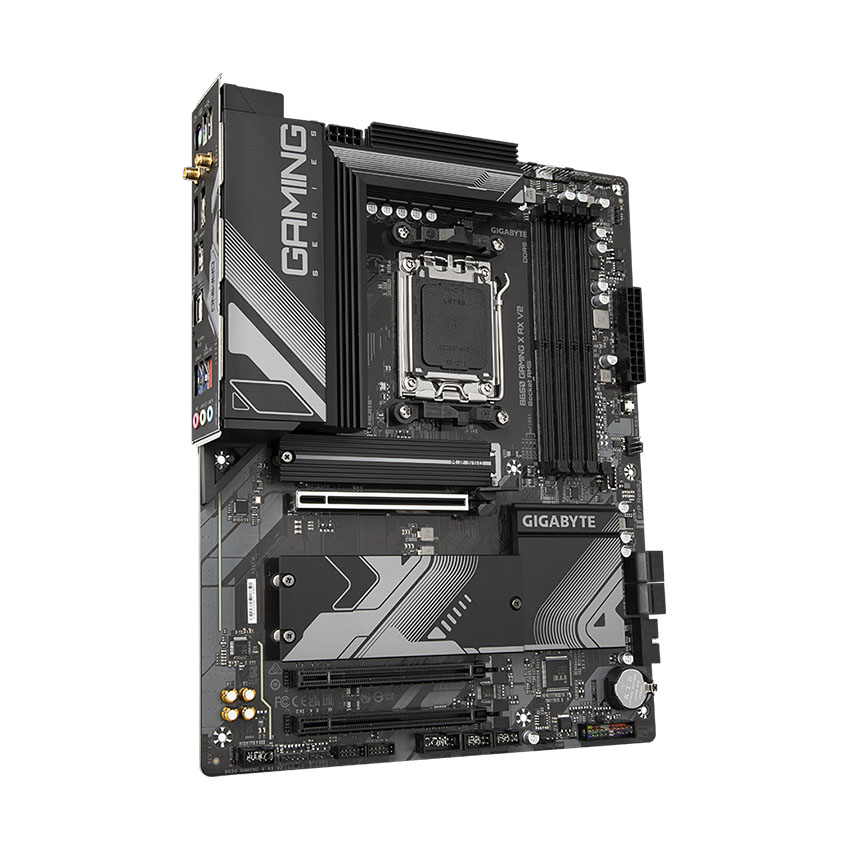

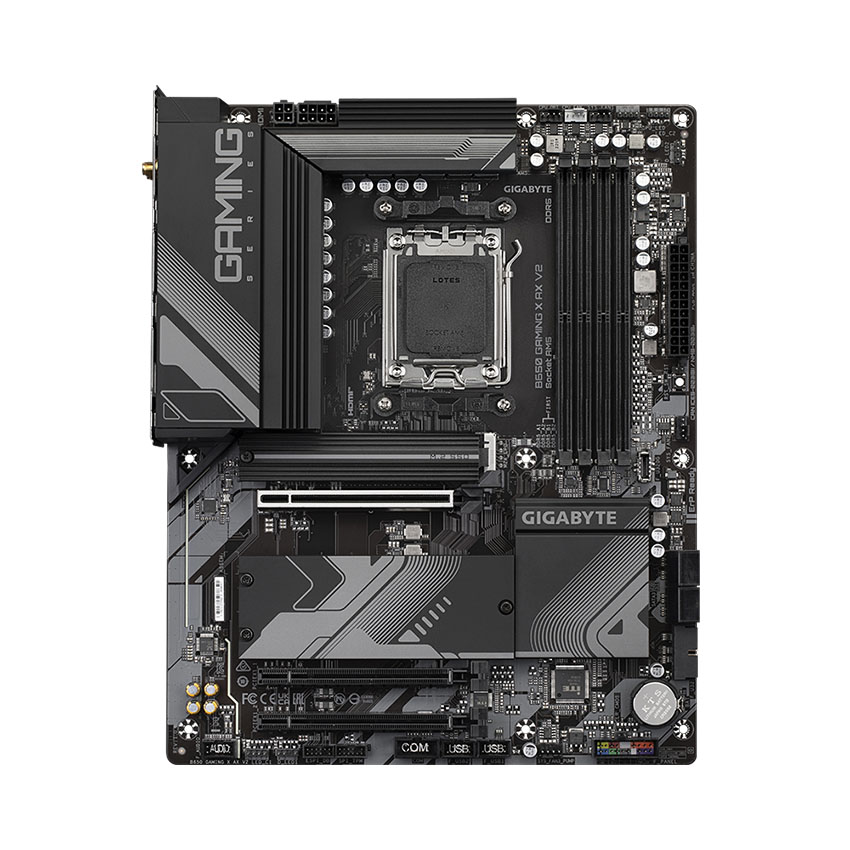

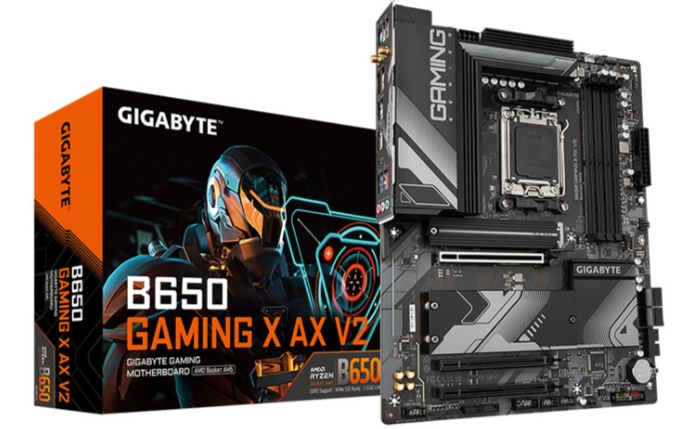

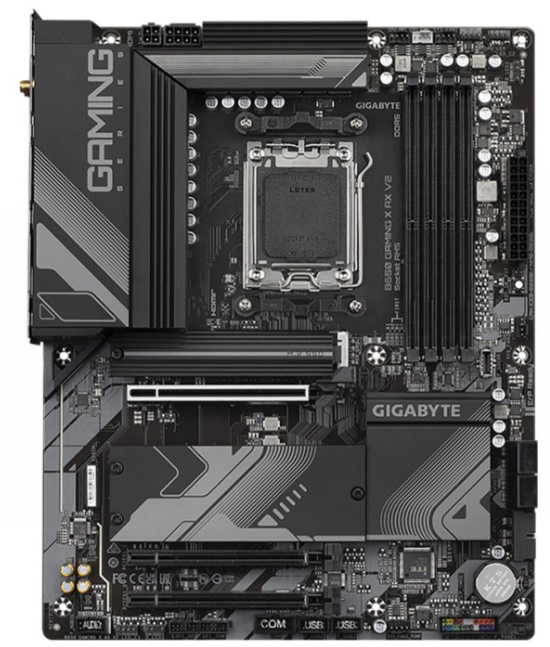

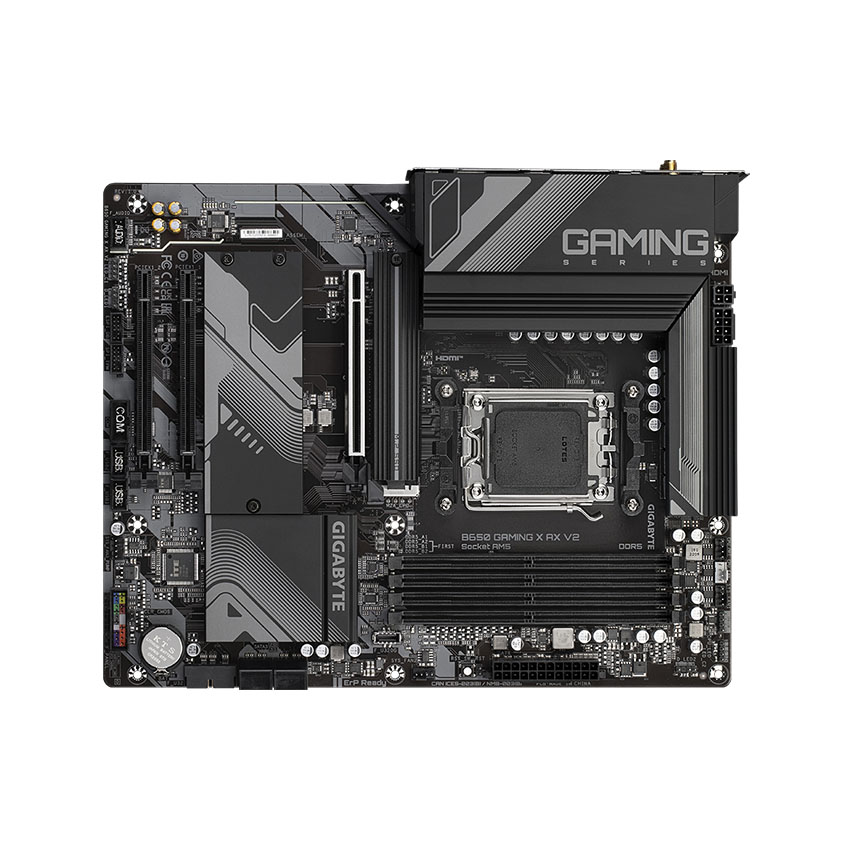

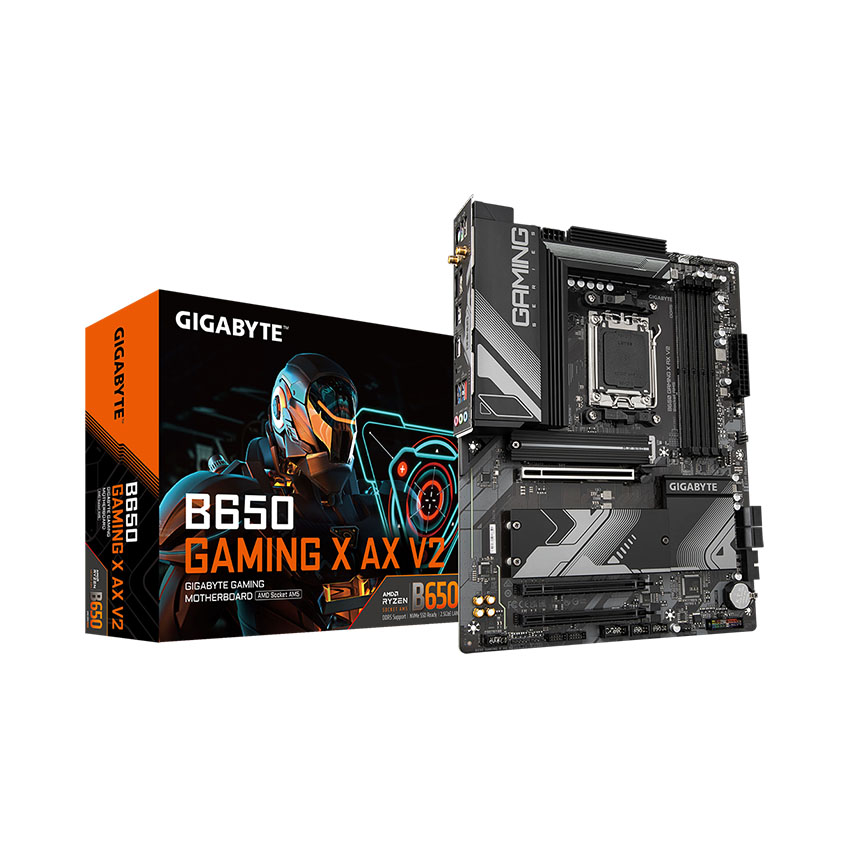

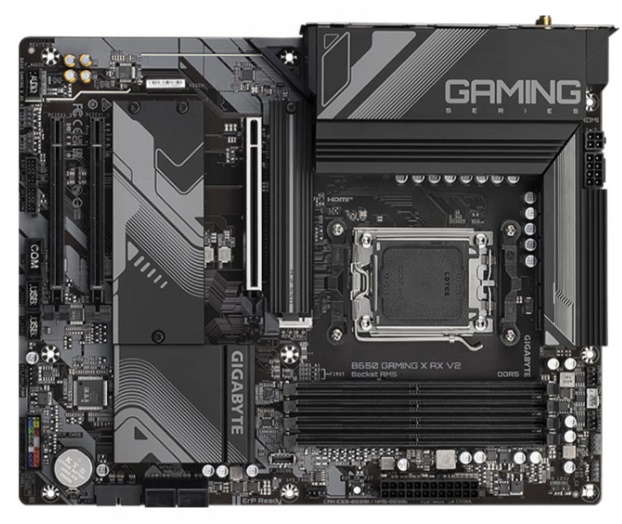

Cấu hình Mainboard Gigabyte B650 GAMING X AX V2 DDR5 (AMD B650/ Socket AM5/ ATX/ 4 khe ram/ 2.5 Gigabit LAN)
| Chipset |
: AMD B650 |
| Socket |
: Socket AM5 |
| Kích thước Main |
: ATX |
| Hỗ trợ CPU |
: AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors |
| Khe cắm RAM |
: 4 khe ram |
| Loại RAM |
: DDR5 |
| Bus RAM hỗ trợ |
: Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules |
| Chi tiết Vga |
: Integrated Graphics Processor with AMD Radeon™ Graphics support:
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
(Support for DisplayPort 1.4 version and HDR).
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
(Support for HDMI 2.1 version and HDCP 2.3).
(Support native HDMI 2.1 TMDS compatible ports).
(Graphics specifications may vary depending on CPU support.) |
| Kết nối mạng |
: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Khe cắm trong |
: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs.
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs.
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Khe cắm mở rộng |
: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU.
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot).
Chipset:
2 x PCI Express x16 slots, supporting PCIe 3.0 and running a |

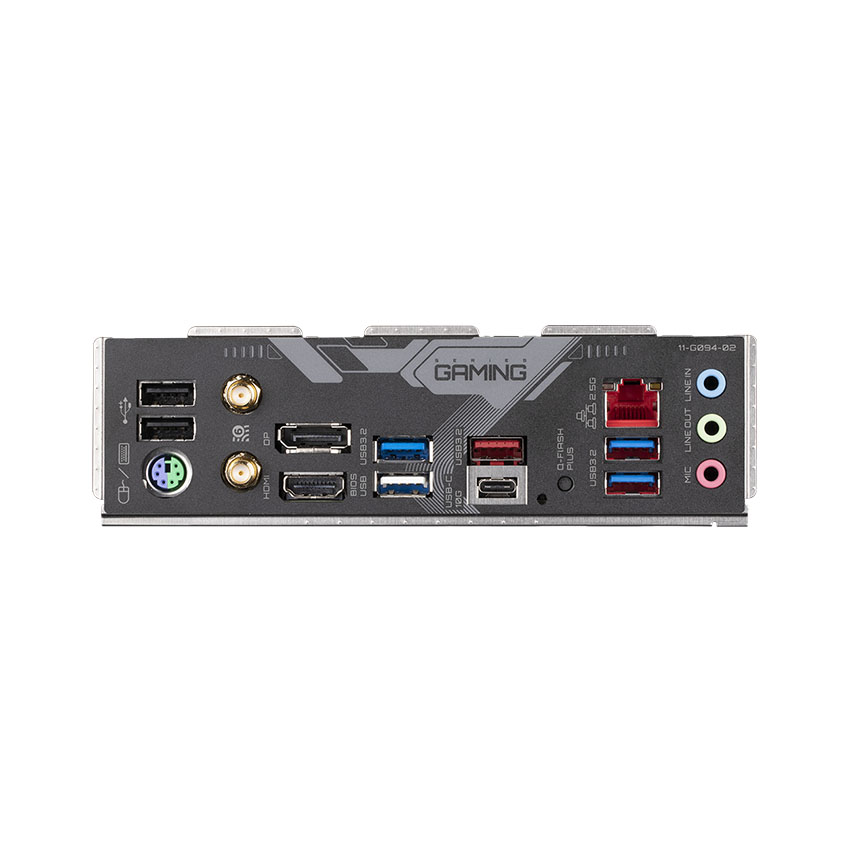

| Cổng giao tiếp ngoài |

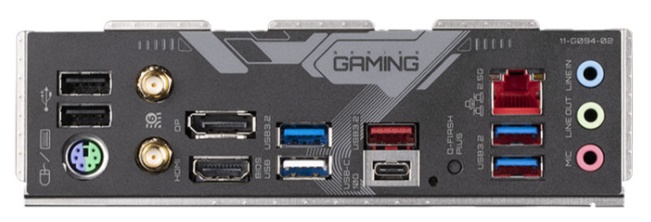

: 2 x SMA antenna connectors (2T2R)
1 x Q-Flash Plus button
1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
3 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks |
| Âm thanh |
: Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel |
| Kết nối mạng |
: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
|
| Loại RAM |
: DDR5 |
|
| Bus RAM hỗ trợ |
: Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules |
| Khe cắm trong |
: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs.
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs.
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Khe cắm mở rộng |
: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU.
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot).
Chipset:
2 x PCI Express x16 slots, supporting PCIe 3.0 and running a |
| Cổng giao tiếp ngoài |
: 2 x SMA antenna connectors (2T2R)
1 x Q-Flash Plus button
1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
3 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks |
|
| Chipset |
: AMD B650 |
| Socket |
: Socket AM5 |
| Kích thước Main |
: ATX |
| Hỗ trợ CPU |
: AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors |
| Khe cắm RAM |
: 4 khe ram |
| Chi tiết Vga |
: Integrated Graphics Processor with AMD Radeon™ Graphics support:
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
(Support for DisplayPort 1.4 version and HDR).
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
(Support for HDMI 2.1 version and HDCP 2.3).
(Support native HDMI 2.1 TMDS compatible ports).
(Graphics specifications may vary depending on CPU support.) |
| Âm thanh |
: Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel |
| Mô tả khác |
: Support for Windows 11 64-bit
Support for Windows 10 64-bit |
| Phụ kiện kèm theo |
: Sách, đĩa, cáp SATA, ... |
