| Chipset |
: Intel B860 |
| Socket |
: Intel LGA 1851 |
| Kích thước Main |
: M-ATX |
| Hỗ trợ CPU |
: LGA1851 socket: Support for Intel ® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU |
| Khe cắm RAM |
: 4 khe ram |
| Loại RAM |
: DDR5 |
| Bus RAM hỗ trợ |
: Support for DDR5 9200(O.C)/ 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules |
| Chi tiết Vga |
: Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz( Support for DisplayPort 2.1 version).
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz (Support for DisplayPort 2.1 version).
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Support for HDMI 2.1 version and HDCP 2.3). |
| Kết nối mạng |
: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Thông số (Lan/Wireless) |
: Intel® Wi-Fi 6E AX211 (PCB rev. 1.0/2.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1/2.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard |
| Khe cắm trong |
: CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Khe cắm mở rộng |
: CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |

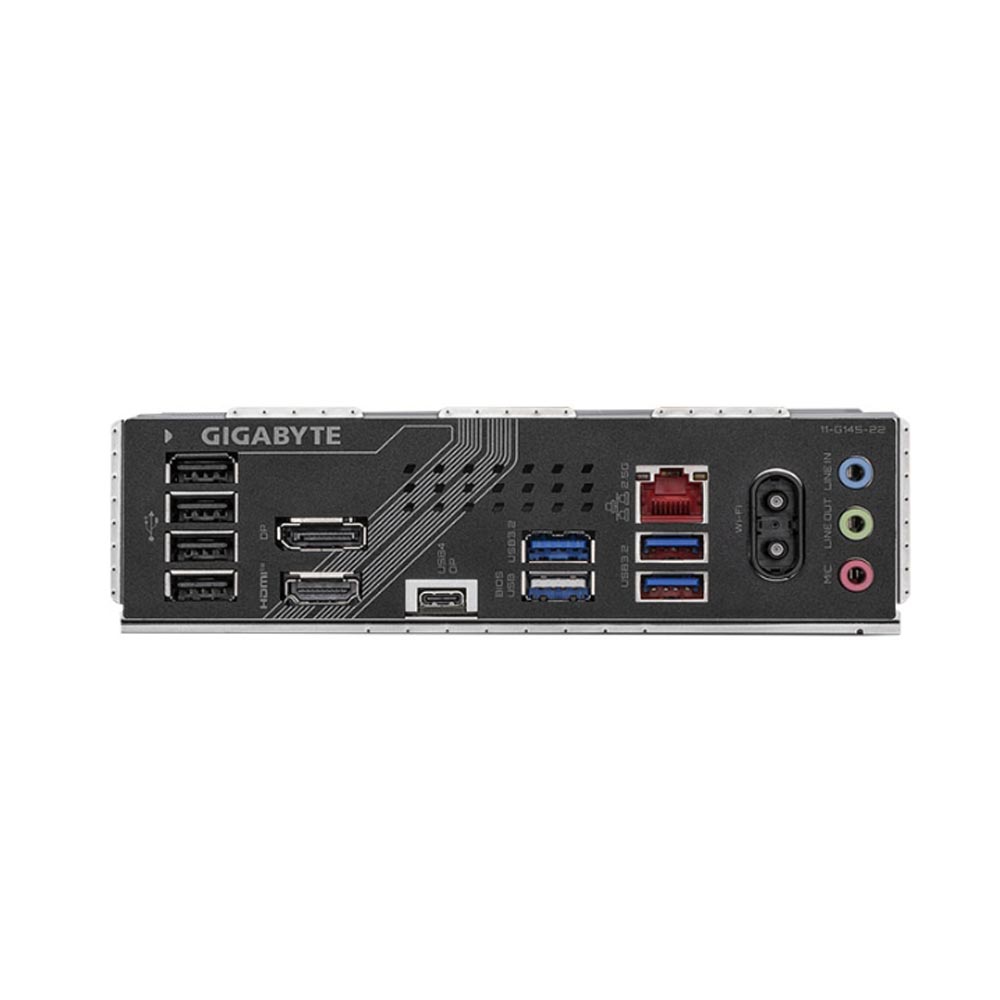

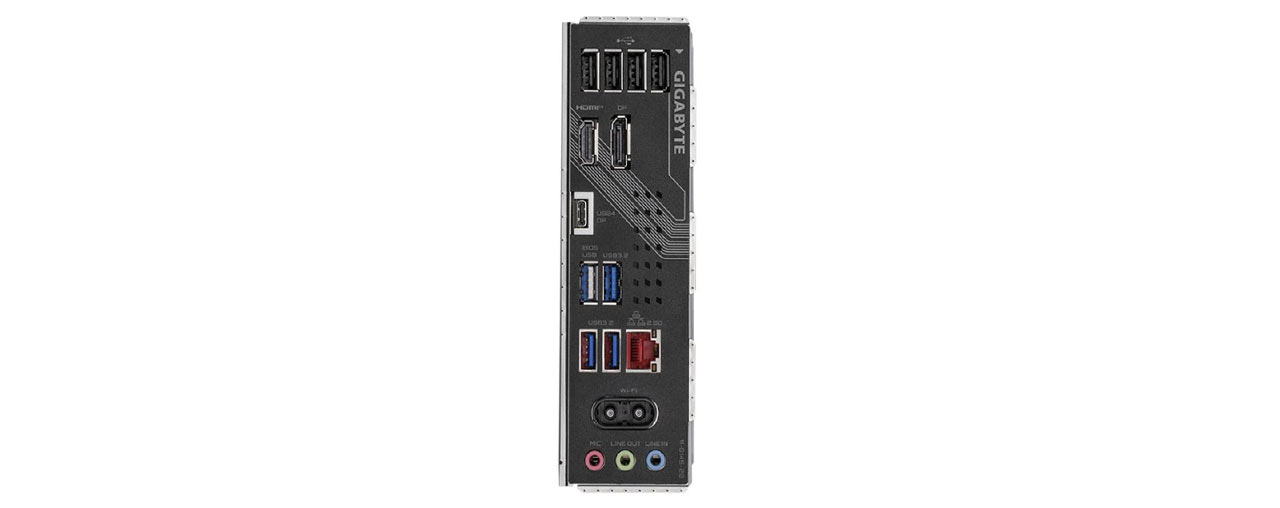

| Cổng giao tiếp ngoài |
: 1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x USB4® USB Type-C® port (DisplayPort (Note))
3 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks |
| Âm thanh |
: Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel |
| Phụ kiện kèm theo |
: Sách, đĩa, cáp SATA, ... |
