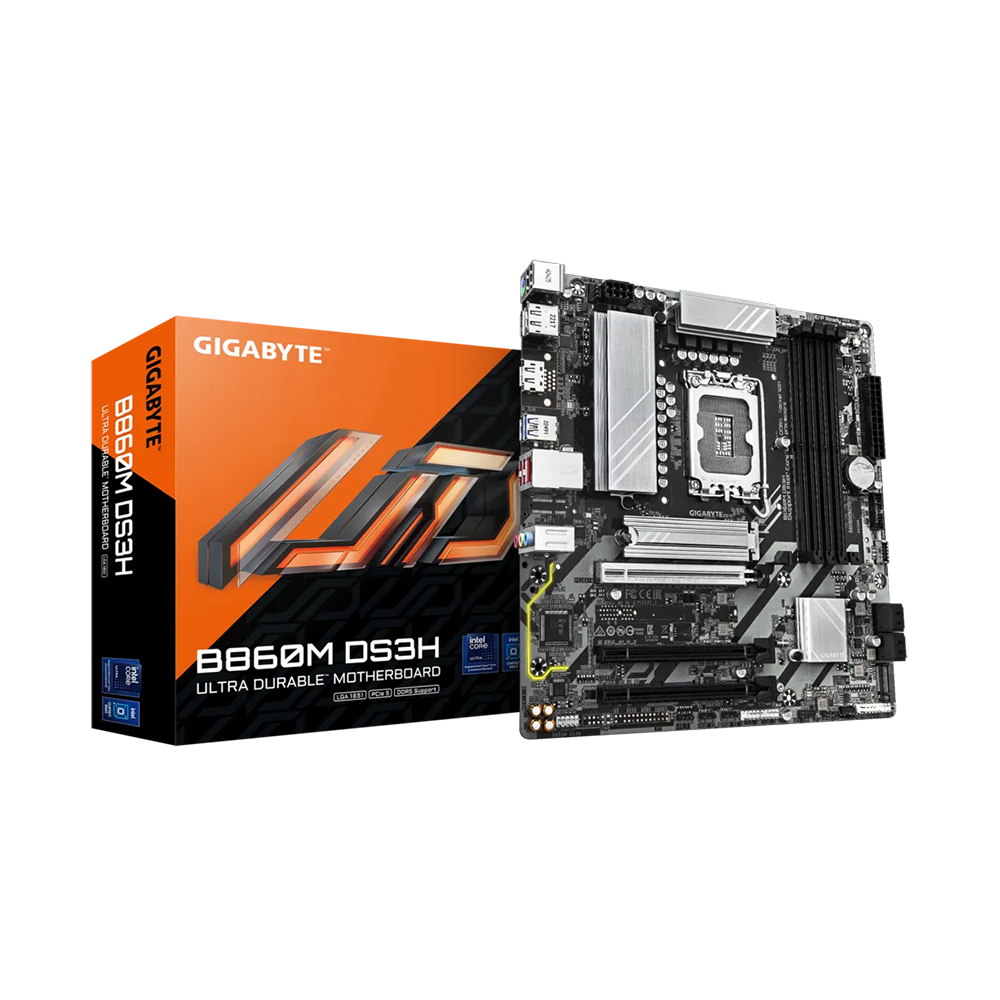

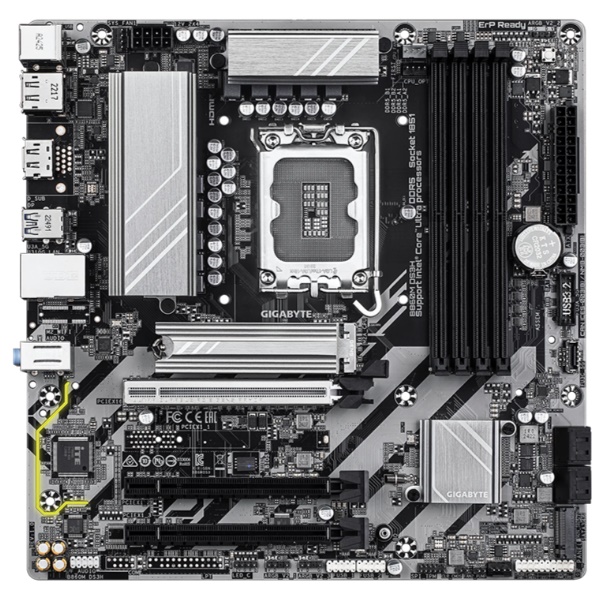

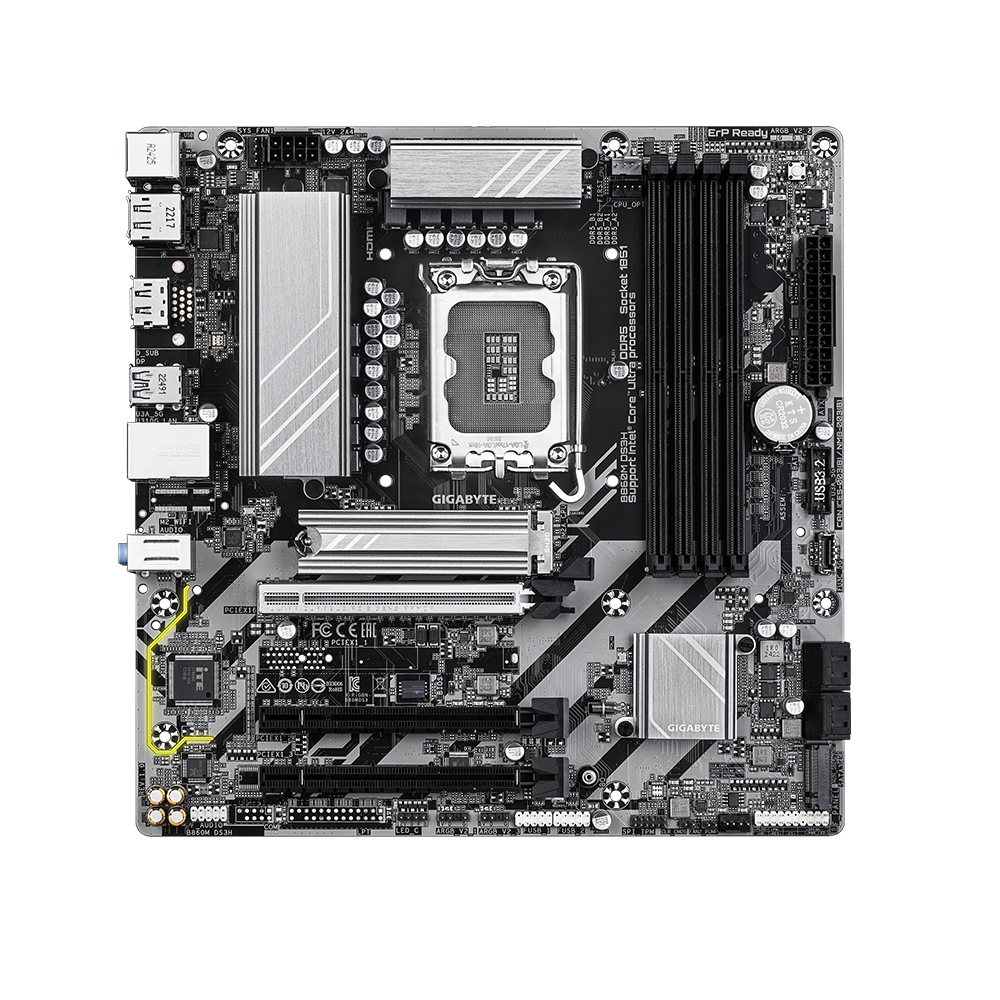

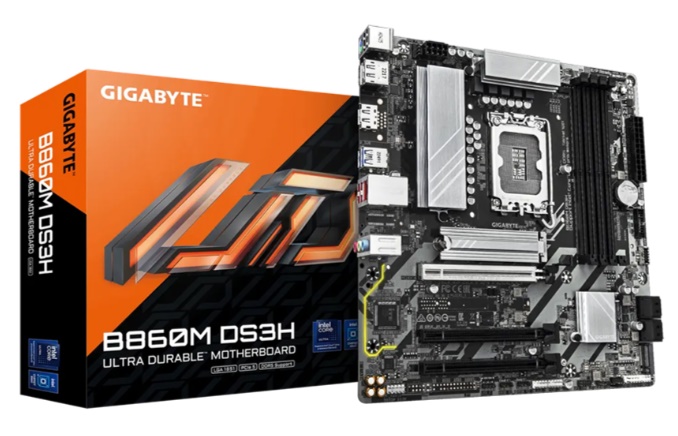

Cấu hình Mainboard Gigabyte B860M DS3H DDR5 (Intel B860/ Socket 1851/ M-ATX/ 4 khe ram/ 2.5 Gigabit LAN)
| Chipset |
: Intel B860 |
| Socket |
: Intel LGA 1851 |
| Kích thước Main |
: M-ATX |
| Hỗ trợ CPU |
: LGA1851 socket: Support for Intel ® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU |
| Khe cắm RAM |
: 4 khe ram |
| Loại RAM |
: DDR5 |
| Bus RAM hỗ trợ |
: Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules |
| Chi tiết Vga |
: Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Support for HDMI 2.1 version and HDCP 2.3).
- 2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz (Support for DisplayPort 2.1 version). |
| Kết nối mạng |
: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Thông số (Lan/Wireless) |
: Chưa cập nhật |
| Khe cắm trong |
: CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Khe cắm mở rộng |
: CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_2/3) |
| Cổng giao tiếp ngoài |

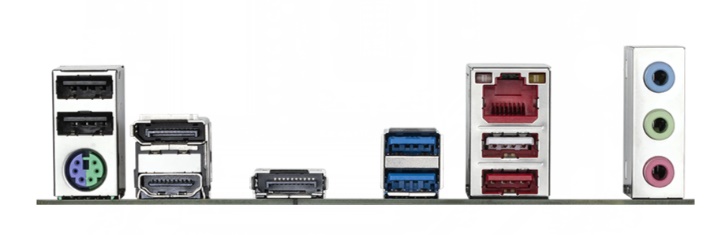

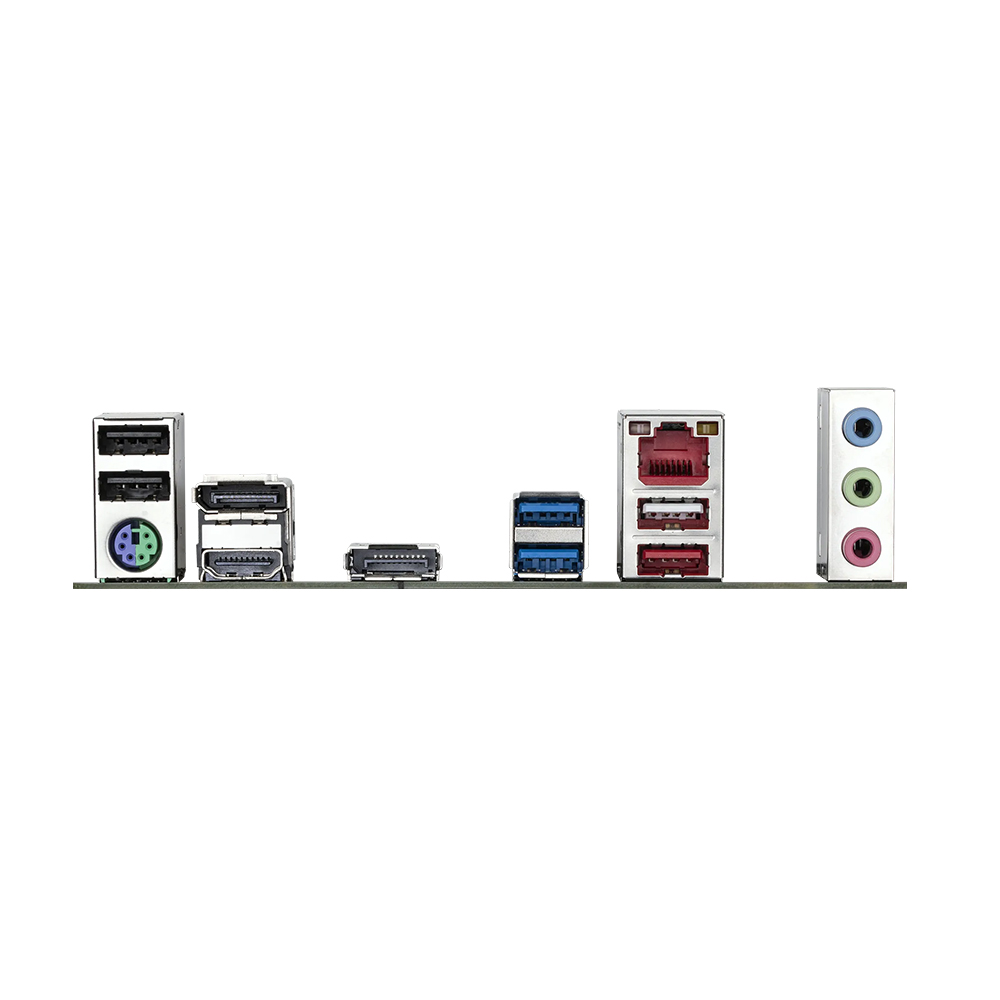

: 1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
2 x DisplayPorts (Note)
1 x USB 3.2 Gen 2 Type-A port (red)
2 x USB 3.2 Gen 1 ports
3 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks |
| Âm thanh |
: Ealtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel |
| Phụ kiện kèm theo |
: Sách, đĩa, cáp SATA, ... |
| Chi tiết Vga |
: Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Support for HDMI 2.1 version and HDCP 2.3).
- 2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz (Support for DisplayPort 2.1 version). |
|
| Loại RAM |
: DDR5 |
|
| Bus RAM hỗ trợ |
: Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules |
| Kết nối mạng |
: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Thông số (Lan/Wireless) |
: Chưa cập nhật |
| Khe cắm trong |
: CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Khe cắm mở rộng |
: CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_2/3) |
| Cổng giao tiếp ngoài |
: 1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
2 x DisplayPorts (Note)
1 x USB 3.2 Gen 2 Type-A port (red)
2 x USB 3.2 Gen 1 ports
3 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks |
|
| Chipset |
: Intel B860 |
| Socket |
: Intel LGA 1851 |
| Kích thước Main |
: M-ATX |
| Hỗ trợ CPU |
: LGA1851 socket: Support for Intel ® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU |
| Khe cắm RAM |
: 4 khe ram |
| Âm thanh |
: Ealtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel |
| Phụ kiện kèm theo |
: Sách, đĩa, cáp SATA, ... |
| Mô tả khác |
: Support for Windows 11 64-bit
Support for Windows 10 64-bit
* The Intel® NPU driver is only supported on Windows 11. |
