| Kết nối mạng |
: Marvell® AQtion AQC113C 10GbE LAN chip |
|
| Loại RAM |
: DDR5 |
|
| Bus RAM hỗ trợ |
: Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. |
| Thông số (Lan/Wireless) |
: Intel® Wi-Fi 7 BE200NGW
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.) |
| Khe cắm trong |
: CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2L_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage d |
| Khe cắm mở rộng |
: CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
(For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot).
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8)
(The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode).
(The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD). |

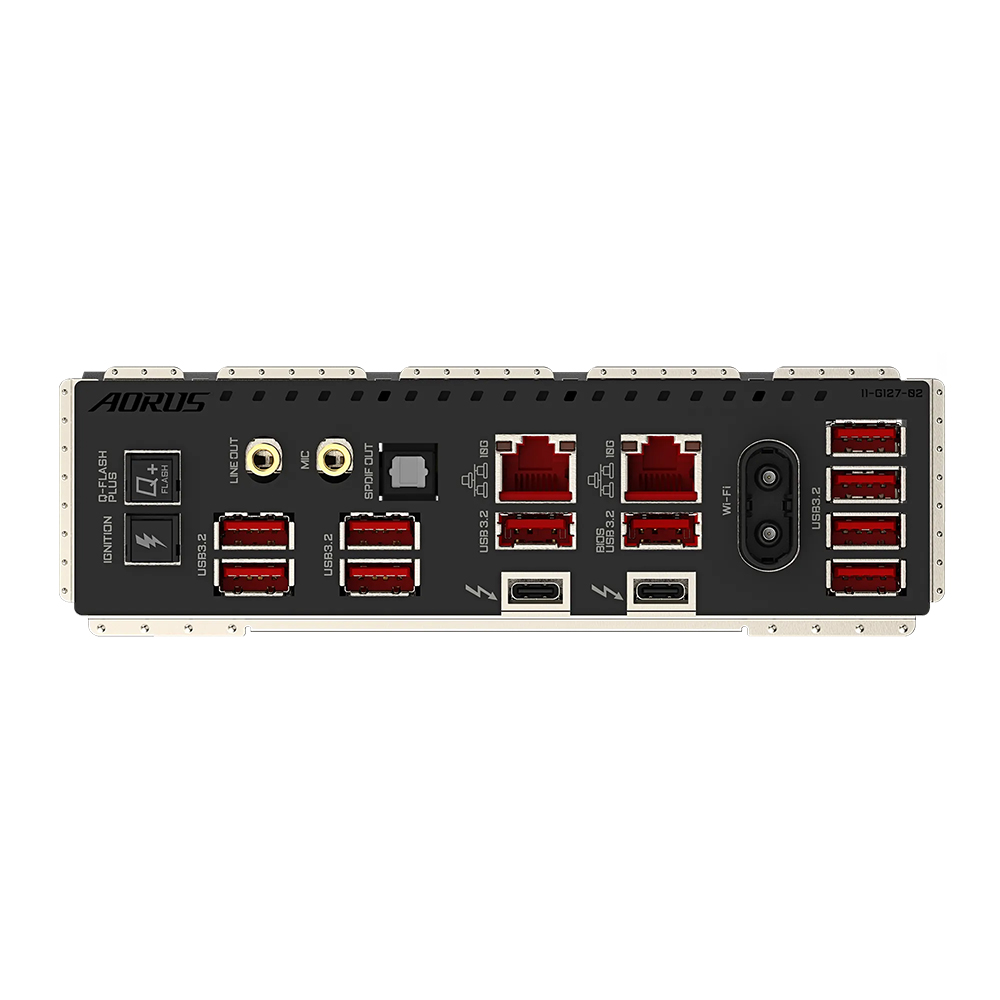

| Cổng giao tiếp ngoài |
: 1 x Q-Flash Plus button
1 x OC Ignition button
2 x Intel® Thunderbolt™ 5(Note) connectors (USB Type-C® ports)
10 x USB 3.2 Gen 2 Type-A ports (red)
2 x RJ-45 ports
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector |
|
| Chipset |
: Intel Z890 |
| Socket |
: Intel LGA 1851 |
| Kích thước Main |
: E-ATX |
| Hỗ trợ CPU |
: LGA1851 socket: Support for Intel® Core™ Ultra Processors
L3 cache varies with CPU |
| Khe cắm RAM |
: 4 khe ram |
| Chi tiết Vga |
: Integrated Graphics Processor+Intel® Thunderbolt™ 5 Controller:
- 2 x Intel® Thunderbolt™ 5 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 7680x4320@60 Hz (single display output)
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x Front Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs |
| Âm thanh |
: 1 ESS ES9280AC DAC chip+2 ESS ES9080 chips
DTS® Sound Unbound™
High Definition Audio
2-channel
Support for S/PDIF Out |
| Mô tả khác |
: Support for Windows 11 64-bit (version 24H2 or later) |
| Phụ kiện kèm theo |
: Sách, đĩa, cáp SATA, ... |
