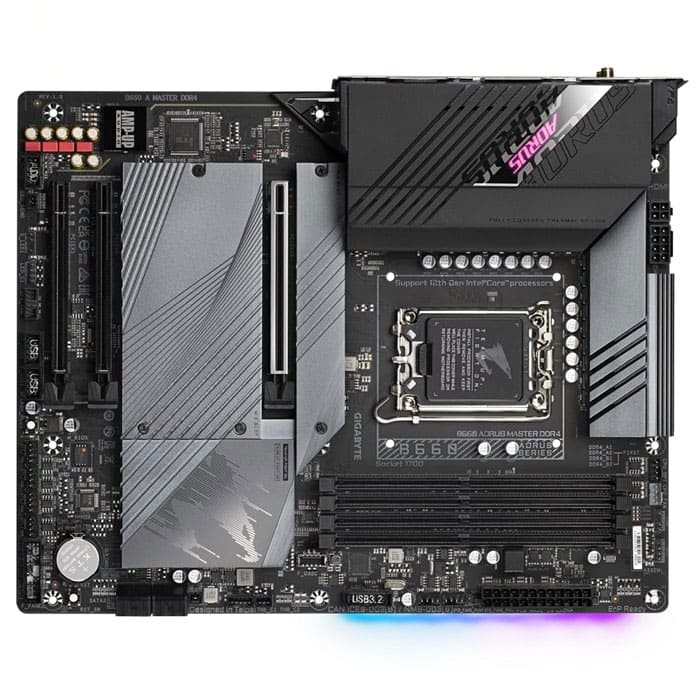

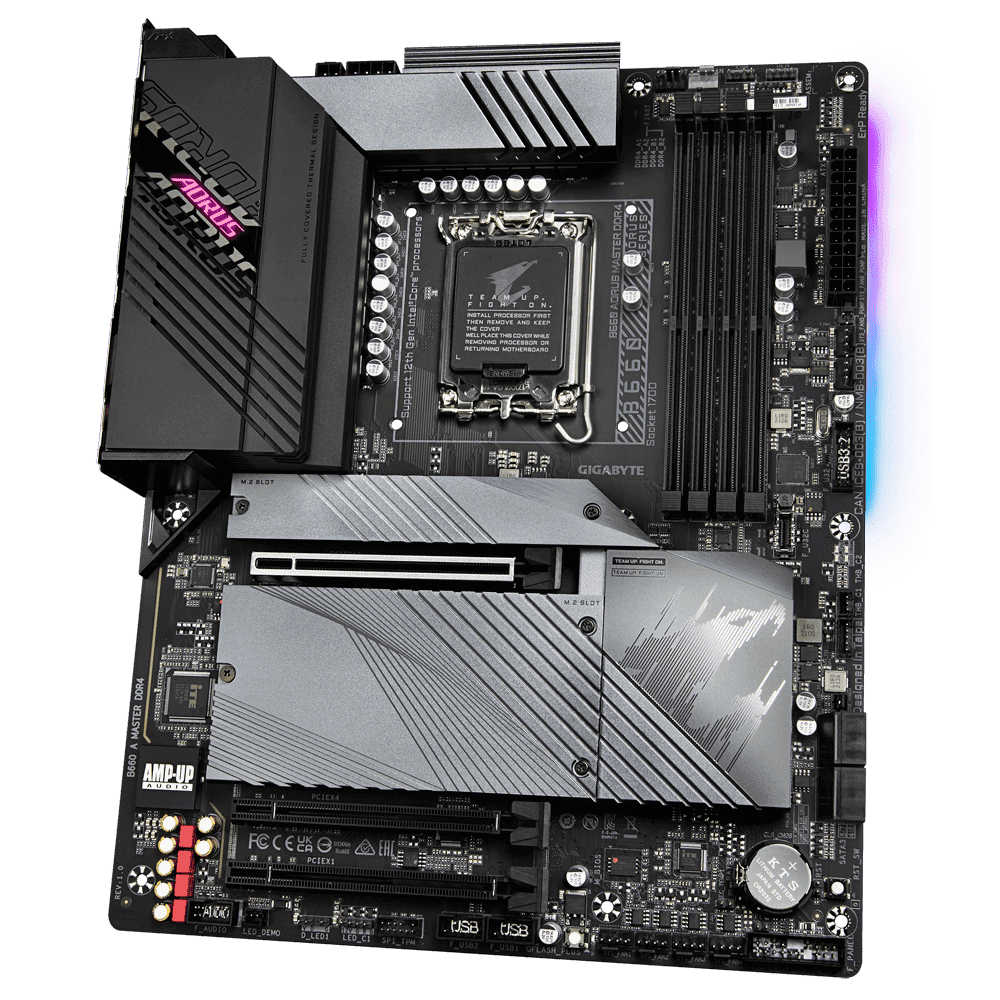

Bo mạch chủ Gigabyte B660 AORUS MASTER DDR4

Giao hàng tận nơi miễn phí theo chính sách vận chuyển (Xem chi tiết)

Lượt xem: 6.410

Bảo hành

36 Tháng. Bảo hành tại Phúc Anh.

📋 Sản phẩm đã ngừng kinh doanh - vui lòng chọn mua sản phẩm khác hoặc liên hệ nhân viên kinh doanh tư vấn

🔊 Gợi ý sản phẩm thay thế

-12%

Mainboard Gigabyte H510M H V2 (Intel H510/ Intel LGA 1200/ M-ATX/ 2 khe ram/ DDR4)

Giá niêm yết: 1.790.000 ₫ Giá khuyến mãi: 1.579.000 ₫

✔ Có hàng

-15%

Mainboard Asus DA H610M-K CSM (Intel H610/ Socket 1700/ M-ATX/ 2 khe ram/ DDR4)

Giá niêm yết: 2.200.000 ₫ Giá khuyến mãi: 1.888.000 ₫

✔ Có hàng

-24%

Mainboard Asus H510M-K Tray (Intel H510/ Intel LGA 1200/ M-ATX/ DDR4/ Lan)

Giá niêm yết: 1.999.000 ₫ Giá khuyến mãi: 1.539.000 ₫

✔ Có hàng

Đang còn hàng tại cửa hàng:

Cấu hình Bo mạch chủ Gigabyte B660 AORUS MASTER DDR4

Chipset	: Intel B660
Socket	: Intel LGA 1700
Kích thước	: ATX
Hỗ trợ CPU	: Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors*
Khe cắm RAM	: 4 khe ram
Kết nối không dây	: WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Bus RAM hỗ trợ	: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx
Thông số (Lan/Wireless)	: Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Khe cắm trong	: CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors
Khe cắm mở rộng	: 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2M_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2M_SB connector. 1 x PCI Express x16 slot, running at x1 (PCIEX1)

Xem thêm cấu hình chi tiết

Kết nối
Bus RAM hỗ trợ	: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx
Thông số (Lan/Wireless)	: Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Khe cắm trong	: CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors
Khe cắm mở rộng	: 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2M_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2M_SB connector. 1 x PCI Express x16 slot, running at x1 (PCIEX1)

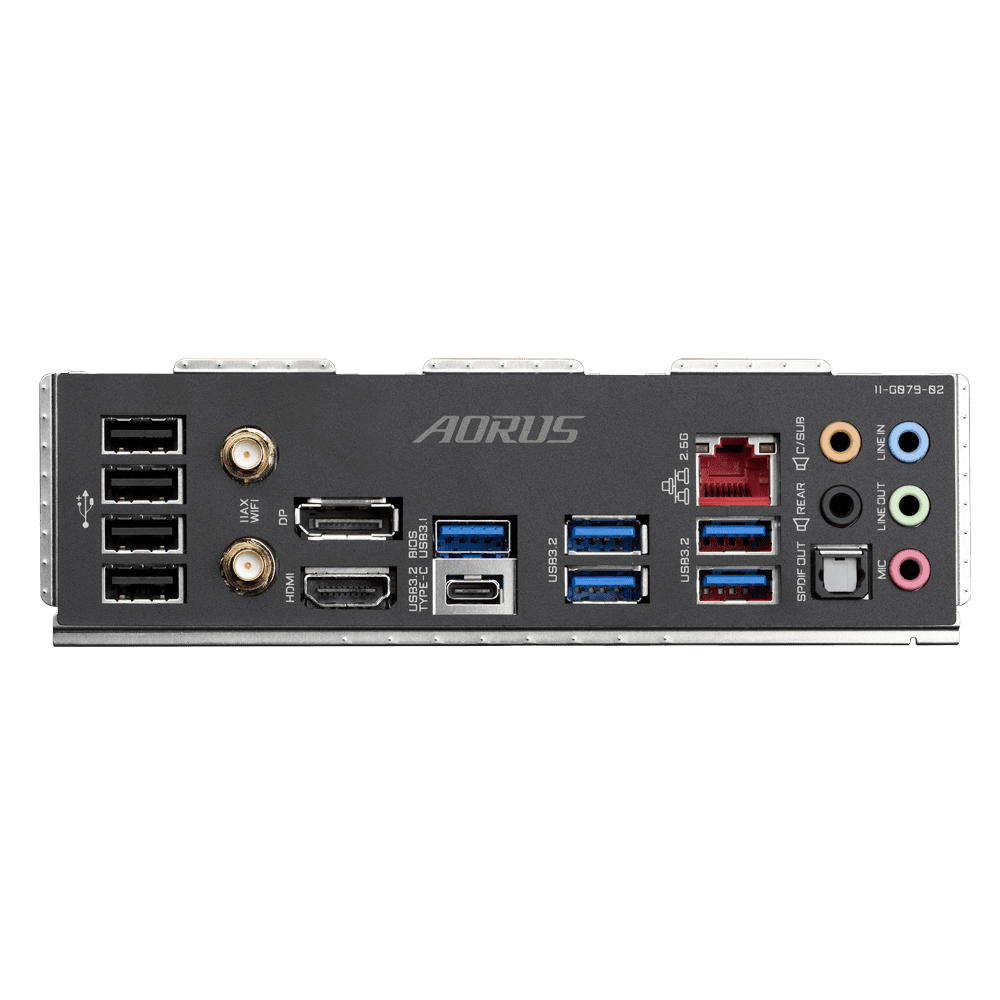

Cổng giao tiếp ngoài	: 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI 2.0 port 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks
Thông tin chung
Socket	: Intel LGA 1700
Hỗ trợ CPU	: Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors*
Chipset	: Intel B660
Khe cắm RAM	: 4 khe ram
Card đồ họa	: x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports (Graphics specifications may vary depending on CPU support.)
Âm thanh	: Realtek® ALC1220-VB CODEC
Kết nối không dây	: WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Kích thước	: ATX
Mô tả khác	: Đang cập nhật
Phụ kiện kèm theo	: Sách, đĩa, cáp SATA, ...
